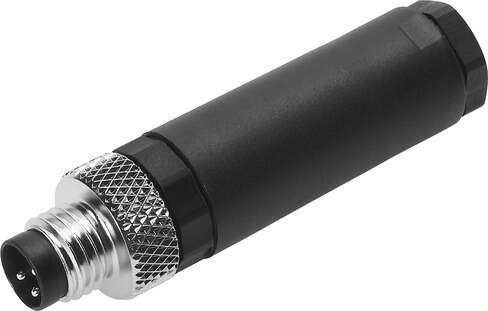

Electrical connection 1, design:Round

Electrical connection 1, connection type:Plugs

Electrical connection 1, cable outlet:Straight

Electrical connection 1, connector system:M8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores:3

Electrical connection 1, type of mounting: Screw-type lock with hexagon A/F 9 mm and longitudinal knurl

Electrical connection 1, connection pattern:00991155

Electrical connection 2, function:Controller side

Electrical connection 2, connector system:Screw terminal

Electrical connection 2, number of connections/cores:8

Operational voltage range DC ≤ 60 V

Operational voltage range AC≤ 60 V

Current rating at 40°C: 3 A

Immunity to surge: 1,5 kV

Cable fitting:Pg7

Cable diameter: 2,5 mm ... 5 mm

Nominal cross section conductor: 0,14 mm² ... 0,5 mm²

Degree of protection: IP65

Note on degree of protection: In assembled state

Ambient temperature:-40 °C ... 85 °C

CE mark (see declaration of conformity): To EU Low Voltage Directive

CE marking (see declaration of conformity): To UK regulations for electrical equipment

LABS (PWIS) conformity: VDMA24364-B2-L

Note on materials: RoHS-compliant

Pollution degree: 3
